Game Characters - Stone/Fire Elemental

As promised, here comes some characters I did during the past 6 months.

I introduce Fire Elemental!

This is one of the earliest characters I did.  Looking back,  it seems okay but definitely needs more attention to details up close.  The thing is, the characters were just supposed to be rendered in small sprites so I believe the amount of detail was satisfactory.  I put it here because it challenged my patience and diligence.  I modeled the whole body in separate boulders stacked on top of each other to make it look or feel real.  I went away with making asymmetrical as I was already pressed for time and I was planning on giving it a more dramatic death and reanimation sequence.

Fire Elemental is a actually a re-skin of the Stone Elemental; they share the same animation and model with mild alterations.

Textures are mostly hand-painted and adjusted in photoshop.

I will post more characters soon and I'll be including a documentation of the workflow.

Busy Business

click to enlarge

Here's what I've been up to for the past 6 months--supplying artwork and assets for a still ongoing game project.  Scope of my work ranges from concept art up to renders.  I've practically been immersed in almost all the fields in game asset creation; I could almost call myself a 3D generalist.  In the end I don't bother too much with titles.  What matters is the work is done and the fun is had.

The work demanded much more than I thought I could give; it was daunting at first but I managed to get through it.  Posted here are some environment art I did. I started from concept art--drawing in silhouettes, shapes, and shades for options before heading to modeling and finalizing textures.

click to enlarge

click to enlarge

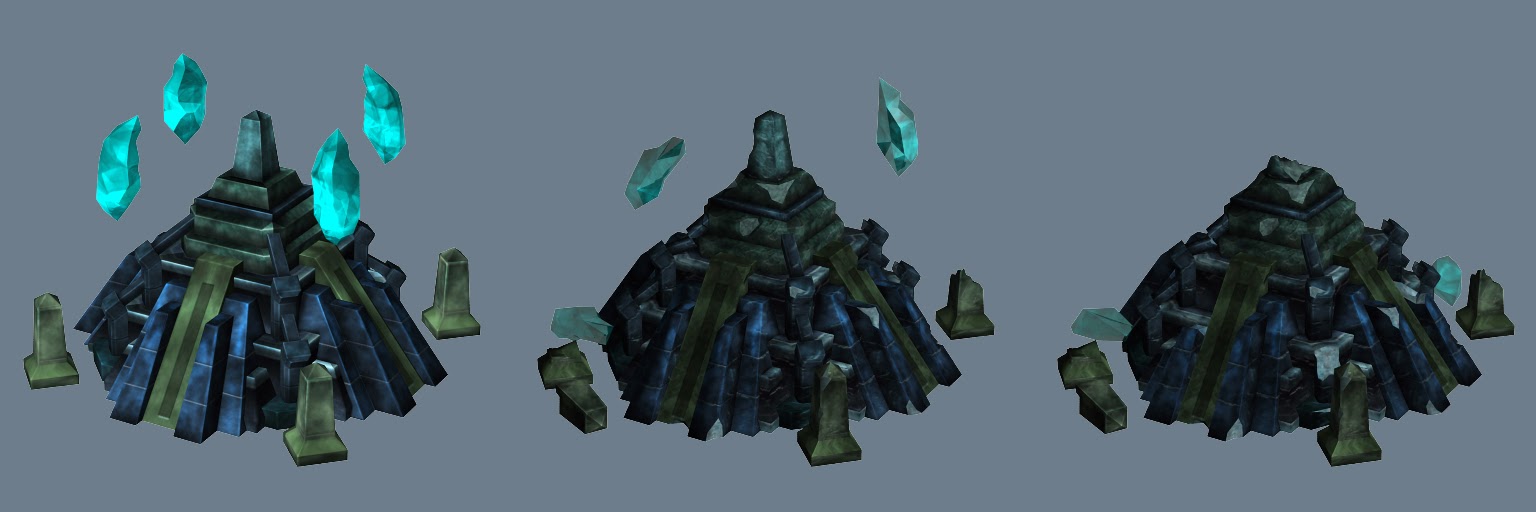

At one point, I finished a render and had to do some more ruined state.  So what I did was I used the current render just took it apart in 2D photoshop to better visualize how I would like it look destroyed in 3D.

click to enlarge

I used the concept as a strict reference in modeling and in effect, I got a pretty close render from the models:

click to enlarge

They may not be the best artworks out there but I'm pretty happy and satisfied with them considering they are really my first all-around environment assets.

Next, I will post some character art and animations. Stay tuned!

Mini Series!

This week I've decided on a new mini project!  I will post a character asset for games complete with animation and png sequence renders.  Here's my initial concept:

A footman

Concept was done in a day.  Modeling and UV to follow will be for one day.  Texturing and Rigging each for one day.  Animation sequences: idle, attacks, walk, run, special move will all be done with minimal frames--6 to 15 frames.  Maximum time to finish the animations is half a day for each 15-frame animation.

Axe Grunt [update 2]

Okay...not too fond of the results.

Texturing should be a whole new other challenge.  I thought I could get away with some baking and monotonous colors.  It's a whole new discipline that is very unfamiliar.  Painting is fun to do but when I had my maps baked, I felt restricted that I couldn't find a way around small missteps as in seams in the texture.  I spent a grueling 3 hours sculpting in details, baking, and "coloring" the texture.  Grunt ended up looking more realistic than stylized.  I have failed in creating a look I wanted and got carried away with sculpting.

I must admit that I got intrigued with how to do stuff that I let the time pass experimenting and doing things I haven't had any experience of.  I could have just stuck with the easier way which is photo manipulation and some freehand painting as it doesn't require sculpting and baking.  It was fun though and I feel there will be more projects that will need those but in this particular one, time is more of the priority.

That said, I would go on to rigging and skinning the character first before I get back to texturing it again--maybe do a remake of the texture.  Things didn't pan out well but I would still give the 3 hours spent back as I get back on track just to know if the challenge can still be completed following my original plan in 8 hours or one working day.

Axe Grunt [update]

Here's an update of the Axe Grunt.  I went on to try quick texturing by using the 3D paint tool in Maya. It does well enough to block off some colors but it doesn't fully give me the detail that I wanted.  It was still a quick way to see how the model will look with colors and a great way to find out how effective the UV layout is.  I noticed a lot of tweaks to the UV should be done to achieve a more effective texturing but before I went on and did it, I proceeded to doing a quick sculpt of the model to have a source for the texture.  I would then bake normal maps or bump maps in to a color map together with ambient occlusion maps.  I am not good with colors or painting that's why this method appeals to me more for the texturing process.

Sculpting in some details was fun but the tools and navigation needed some getting used to.  I used Sculptris Alpha 6 for this.  I am also hoping in the future that I could paint in colors using the freeware as Sculptris has a paint mode.

Here's my initial sculpt:

With this sculpt, I exported an .obj file to be used as a reference and source of the normal map baking. When I put the high-resolution mesh in Maya, I had to adjust the low-poly model to suit the silhouette better.

working low-poly mesh. 998tris

I then went on to finalizing the UV layout so I could start baking the texture maps.

In high quality hardware render mode in Maya:

with normal and ambient occlusion as diffuse. 1024x1024

Now that I know the method is good, I'll go on to finalizing the sculpt and putting in colors and more details from images to complete the texturing process.  So far I've spent 2.5hrs in this update and 4hrs total in the project.  I feel it would take me 1.5-2hrs to finish texturing so I would need to rig and skin the character in around 2hrs to stay in the 8-hour period of the 1 work day challenge I set upon myself.

1Day Asset Challenge #1 - Axe Grunt

Finally another post!  I got motivated to get back to my personal works as I try to build up my portfolio.

I am more of a 3D modeler than an illustrator or concept artist so I figured to fill the blog with more 3D works.  On the other hand, 3D assets take time to do so I made a challenge for myself to do one in just a day--8-10hrs from scratch.  Along the way, I may reuse some models I have but for this one, everything is done from scratch and I started with blocking it all in--skipping the concept 2D art.

I decided to go with a generic grunt and in this particular challenge the specs are:

1000 tris

1 512x512 diffuse map

rigged

Here are my WIPs:

Started with cubes then went to plane modeling from neck up.

the first 20min.  544tris and counting...

 Tweaks for silhouette/ added more verts. Generally added muscle contours.

now at 44min around 830tris

Tweaked proportions--enlarged hands, longer legs.  Added accessories and weapon.

1hr in...980tris, already with some uv projections

 Detailed the face.  More accessories.  Pulled some verts to suggest clothing in silhouette (boots,sleeve).

final WIP for tonight 988 tris, a total of under 1.5hrs (failed to monitor my exact time as I went for a lot of breaks)

I'll continue this tomorrow.  My target is to be finished with the model and uv by the 3rd hour.  Texturing will follow and is expected to take up 2hrs  leaving rigging with 3hrs.  I'm not so excited with texturing but it's worth a try.   This'll be one of many newer 3d works for my portfolio.

Adventure Time!

This weekend I started working on a personal project with the specs and instructions from an ongoing contest.  It caught my interest as the workflow covers from modeling to animation of a character.  I'm not sure yet if I'll join but I rather do either way than just let it pass.  My first step was to create a concept art by collecting various reference photos.  Also, start to block in some silhouettes.  Minutes later, I ended up sketching nude body types to show the pose better.  In addition, I wasn't really sure of what the character has on so I couldn't make myself block in some shapes yet.  Here's the initial WIP:

Next, I channeled my inner fashion guru for her getup--something I think I'm horrible at.  Here's what I've come up with along with the face and other tweaks:

Based on careful thought, I wanted my adventure character to be a strong and able woman built for extreme challenges.  She's essentially an adventurer who thrives in thrilling and dangerous ways of retrieving artifacts. Let's just say she's got more brawn than Lara Croft and charges at obstacles head on.

This will have to do for now. One more pass in concept art and I think I'll proceed to blocking it off in 3D.
